DJI Power 1.8kW Solar/Car Super Fast Charger Wireless Control Combo

Tips The 1.8kW Solar Car Super Fast Charger is suitable for 12V or 24V car systems. The input voltage of the car charging terminals must not exceed 45 V.

The maximum input voltage for the MC4 Solar Panel Cable is 60 V, and the maximum power is 1200 W. When connecting the Car Solar Charging Port to solar panels, the maximum input voltage is 45 V, and the maximum power is 600 W. Pay attention to the series and parallel configuration of the solar panels to avoid exceeding port limits.

When using with DJI Power 1000, achieving the 1800W max recharging power requires connecting the power station to a DJI Power Expansion Battery 2000.

Specifications Weight Approx. 1.2 kg; Dimensions 260 126 63 mm (L W H) ; MC4 Solar Panel Cable (Input) Rated 12-60 V, max current 20 A, max power 1200 W* XT90 Car Solar Charging Port (Input) Rated 12-45 V, max current 43 A, max power 600 W* SDC Port (Output) 40-58.4 V * Measured in a ambient environment of 25 C (77 F) when being recharged at 60 V and 20 A. ** Measured at an ambient temperature of 25 C (77 F) when connected to a 12V car system with an input of 14 V and 43 A.*** When using with DJI Power 1000, achieving the 1800W max recharging power requires connecting the power station to a DJI Power Expansion Battery 2000.

Output (Power Supply with Solar Power) SDC Port (Input) 40-58.4 V ; Output (Power Supply with Car Power) SDC Port (Input) 40-58.4 V XT90 Car Solar Charging Port (Output) 12V Car System 11-14.4 V, 600W max power* 24V Car System 22-28.8 V, 600W max power* * At temperatures between 0 to 45 C (32 to 113 F), it can continuously recharge DJI Power 1000 at 600 W via the car's alternator.

Charging Temperature 0 to 45 C (32 to 113 F) Power Supply Temperature -10 to 45 C (14 to 113 F)

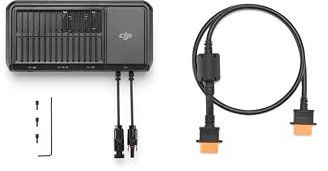

What's in the Box DJI Power 1.8kW Solar Car Super Fast Charger 1; DJI Power SDC to SDC Adapter Cable (30A) 1; M2.5 Hex Socket Screw 3; M2.5 Hex Key 1.
