DJI RS 3 Pro
DJI RS 3 Pro
Shipping expected to commence from Wednesday 29th June.
Key Features
- 4.5kg Tested Payload
- Automated Axis Locks
- LiDAR Focusing
- Extended Carbon Fibre Axis Arms
- O3 Pro Transmission
Description
Nothing Out of Reach

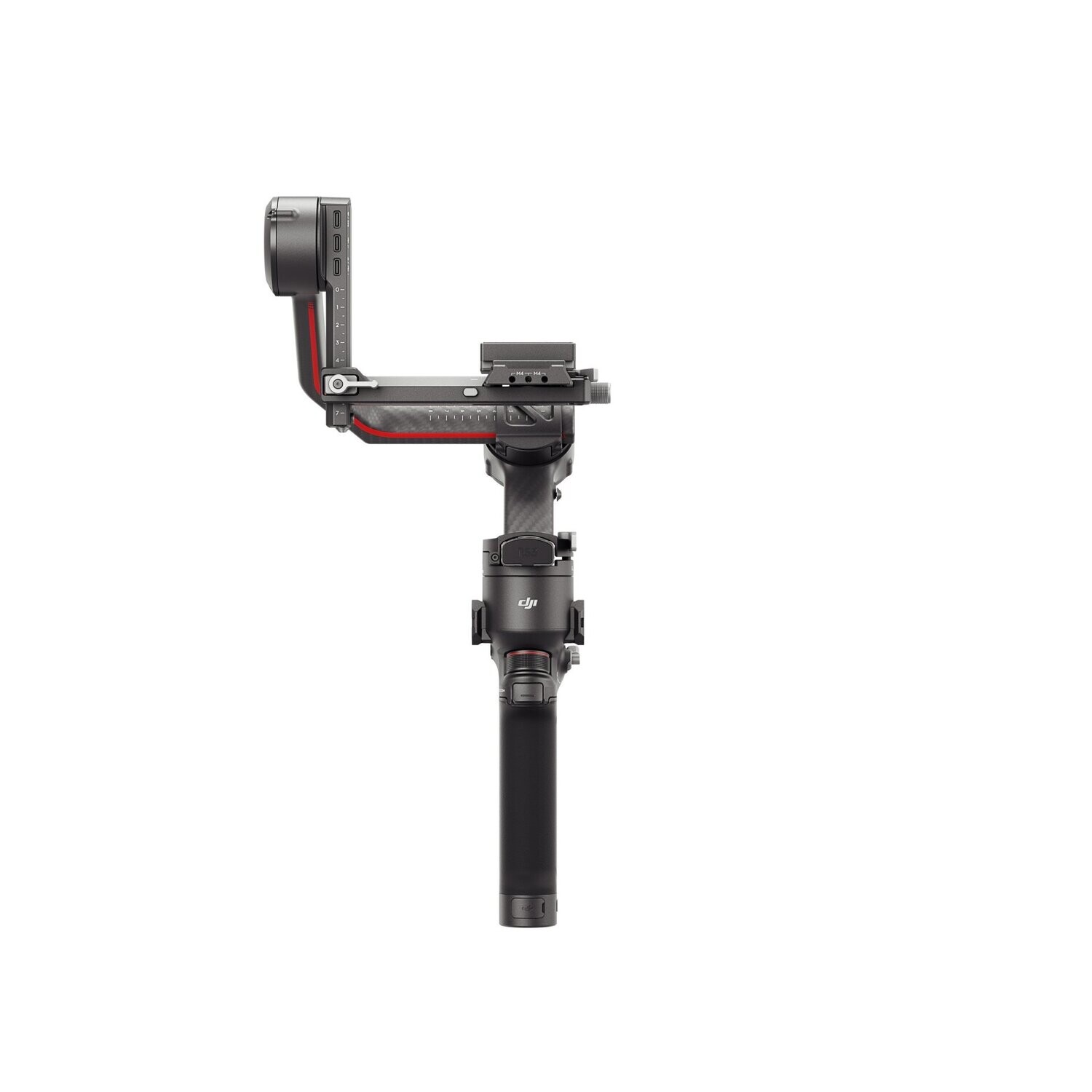

The DJI RS 3 Pro is an advanced and comprehensive camera expansion solution offering videographers professional stabilisation.
The RS 3 Pro arms are constructed from layered sheets of uncut carbon fibre, making the RS 3 Pro both strong yet light. In addition, the new extended lower quick-release plate offers more balancing space for professional cameras and ensures more stable camera mounting.
Automated axis locks facilitate a smooth set up and dismantling process with the press of a button while a fine-tuning knob on the tilt axis lets the camera in place move forwards or backwards with greater precision.
Despite weighing a mere 1.5kg, the RS 3 Pro’s payload capacity of 4.5kg is more than sufficient for most mainstream cameras.
The RS 3 Pro has a 1.8-inch OLED full-colour touchscreen, with a 28% larger display screen than the RS 2. The OLED screen also offers higher brightness than the LCD screen featured on the RS, which is better for outdoor viewing.
Thanks to a 3 rd generation RS stabilisation algorithm, enjoy a 20% increase in stability compared to the RS 2. SuperSmooth Mode further increases motor torque to enhance stabilisation and achieve even smoother results.
Ronin 4D’s LiDAR focusing technology is applied to the RS 3 Pro. The new LiDAR Range Finder can project 43,200 ranging points within a 14-meter distance. The LiDAR focusing system supports both Wide Mode and Spot Mode.
Combining the LiDAR Range Finder with the new RS Focus Motor makes cinematic autofocus on manual lenses possible.
Enjoy long-range wireless transmission. The 03 Pro Video Transmission supports a 6km/20,000ft video and audio transmission range with ultra-low latency.
Specifications
Peripheral
| Accessory Port | RSA/NATO Ports 1/4"-20 Mounting Hole Cold Shoe Video Transmission/Focus Motor Port (USB-C) RSS Camera Control Port (USB-C) Focus Motor Port (USB-C) |
| Battery | Capacity: 1950 mAh Max. Runtime: 12 hours Charging Time: Approx. 1.5 hours (using 24W charger; it is recommended to use QC 2.0 or PD protocol chargers) |
| Connections | Bluetooth 5.0 Charging Port (USB-C) |
| Ronin App Requirements | iOS 11.0 or above Android 7.0 or above |
| Languages Supported by the Touchscreen | English; Simplified Chinese; Traditional Chinese; German; French; Korean; Japanese; Spanish; Portuguese (Brazil); Russian; Thai |
Working Performance
| Tested Payload | 4.5 kg |
| Maximum Controlled Rotation Speed | Pan: 360°/s Tilt: 360°/s Roll: 360°/s |
| Mechanical Range | Pan axis: 360° continuous rotation Roll axis: -95° to +240° Tilt axis: -112° to +214° |
Mechanical & Electrical Characteristics
| Operating Temperature | -20° to 45°C |
| Weight | Gimbal: Approx. 1,143 g Grip: Approx. 265 g Extended Grip/Tripod (Metal): Approx. 226 g Upper and Lower Quick-Release Plates: Approx. 107 g |
| Gimbal Dimensions | Folded: 268 x 276 x 68 mm (excluding camera, grip, and the Extended Grip/Tripod) Unfolded: 415 x 218 x 195 mm (height includes grip and excludes the Extended Grip/Tripod) |
DJI LiDAR Range Finder (RS)
| Accessory Port | Cold Shoe 1/4"-20 Mounting Hole USB-C Port USB-C Power/CVBS/CAN Data Port |
| Image Sensor | Resolution: 448 x 298 on the RS touchscreen Frame Rate: 30 fps Focal Length: 30 mm equivalent |
| ToF Sensor | Resolution: 240 x 180 Sensing Range: 0.5 to 14 m FOV: 57.4° (horizontal), 44.6° (vertical), 70.1° (diagonal) Focal Length: 30 mm equivalent Distance Error: 1% |
| Machine Learning | Frequency: 30 Hz Tracking Subjects: Can recognise up to five subjects at the same time, and choose one to follow Smart Object Identification: Human face, head, and body |
| Electrical Properties | Power Consumption: 6.8 W Input: 7 to 16 V |
| Operating Temperature | -20° to 45°C |
| Mechanical Properties | Dimensions: 66 x 57 x 24 mm Weight: Approx. 130 g Mounting Plate Height: 30 mm |
| Lenses That Do Not Need Calibration | DZOFILM Vespid Cyber 35 mm DZOFILM Vespid Cyber 50 mm DZOFILM Vespid Cyber 75 mm |
What's in the box?
- 1 x Gimbal
- 1 x BG30 Grip
- 1 x USB-C Charging Cable (40 cm)
- 1 x Lens-Fastening Support (Extended)
- 1 x Extended Grip/Tripod (Metal)
- 1 x Quick-Release Plate (Arca-Swiss/Manfrotto)
- 1 x Briefcase Handle
- 1 x Multi-Camera Control Cable (USB-C, 30 cm)
- 1 x Screw Kit
- 1 x Carrying Case
