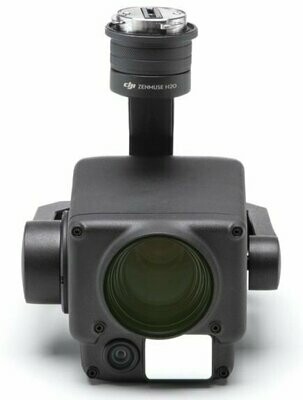

The Zenmuse H20 is a multi-sensor payload that brings a whole new meaning to mission efficiency. The unique intelligence and integrated design provide unprecedented aerial imaging capabilities for a range of commercial drone applications.
A 20MP Zoom Camera and a 12MP wide camera are coupled with an integrated laser rangefinder (LRF) measures the distance to an object at up to 1200m away.
With an IP44 Rating and the ability to operate at temperatures between -20°C and 50°C, this powerful hybrid sensor solution unleashes advanced intelligent capabilities for DJI’s industrial drone platforms.
This multi-sensor payload is the optimal match for the DJI Matrice 300 RTK.
Specifications
Weight
678±5 g
Dimensions
150 x 114 x 151 mm
Ingress Protection Rating
IP44
Operating Temperature
-20°C to 50°C
Zoom Camera
20 MP
1/1.7” CMOS
4K/30fps
Wide Camera
12 MP
1/2.3” CMOS
Laser Rangefinder
905 nm
3 – 1200 m
High-Res Grid Photo
Yes
Night Scene
Yes
AI Spot Check
Yes
PinPoint
Yes
Smart Track
Yes
What's in the box?
1 x DJI Zenmuse H20
