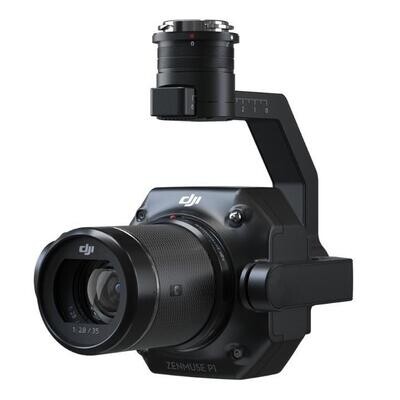

Efficiency Through Flexible Full-Frame Photogrammetry
The DJI Zenmuse P1 was designed for photogrammetry operations and takes efficiency and accuracy to a whole new level.
This payload combines a 45MP full-frame sensor that can be integrated with 24mm, 35mm, or 50mm lenses. It also features a 3-axis stabilised gimbal.
Enjoy exceptional efficiency, with a full-frame, low noise and highly sensitive sensor that can take photos every 0.7 seconds during a flight. The Zenmuse P1 can cover 3km in a single flight. Moreover, with a global mechanical shutter and TimeSync 2.0, users can gather centimetre-accurate data combined with the real-time position and orientation compensation technology.

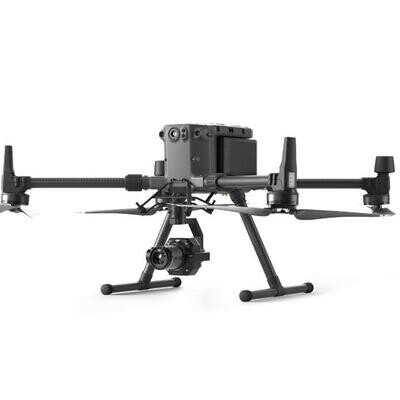

Pairing the P1 camera with the DJI M300 RTK and mapping software, DJI Terra, provides a highly accurate aerial photogrammetry solution.
The P1 can demonstrate its true capabilities across a range of applications including topographic mapping; cadastral surveying; AEC and Surveying; Natural Resource Management; Geological Investigation; and Disaster Site Modelling.
Specifications
Dimensions
198 x 166 x 129 mm
Weight
Approx. 800 g
IP Rating
IP4X
Supported Aircraft
Matrice 300 RTK
Operating Temperature Range
-20° to 50°C
Absolute Accuracy
Horizontal: 3 cm Vertical 5 cm* *Using Mapping Mission at a GSD of 3cm and flight speed of 15m/s, with
Camera Sensor
Sensor size (still): 35.9 x 24 mm (full frame) Sensor size (max video recording area): 34 x 19 mm Effective Pixels: 45 MP
Supported Lenses
DJI DL 24mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 84° DJI DL 35mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 63.5° DJI DL 50mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 46.8°
